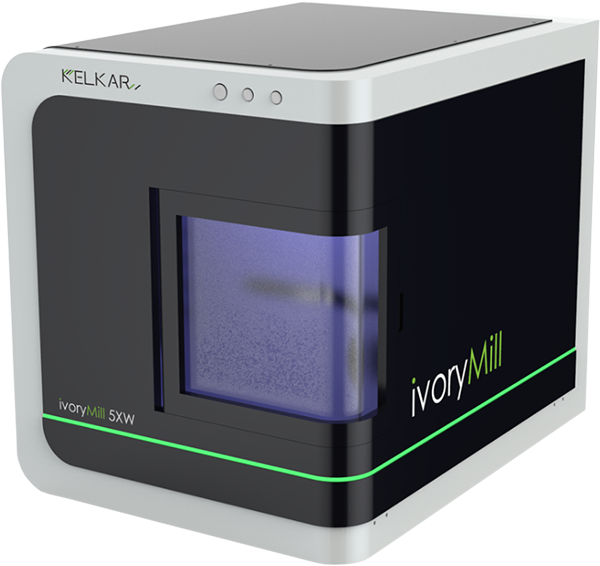

ivoryMill, our proprietary 5 axis dental milling machine is perfectly engineered to machine crowns, bridges, copings, bars, abutments, screw retained crowns, inlays, onlays, veneers, etc. on materials such as zirconium oxide, PMMA, wax, PEEK, glass ceramic and hybrid ceramic.

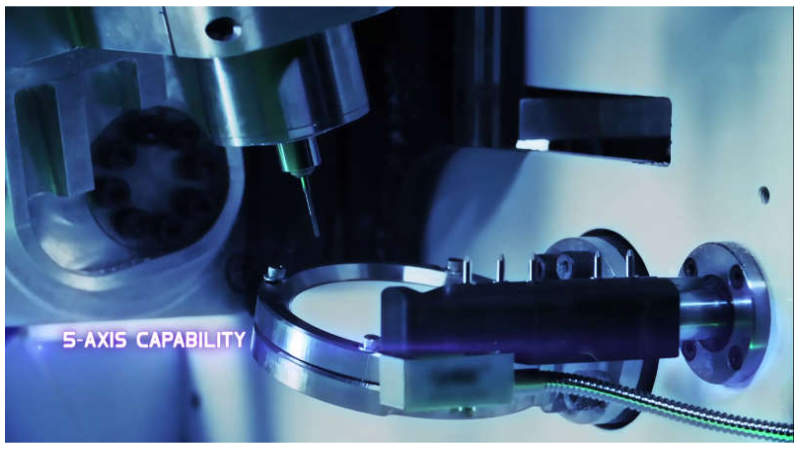

ivoryMill comes with a 4 or 5 axis milling option. The 5 axis simultaneous milling protocol helps to mill the most complex set of geometries. Milling undercuts is definitely possible due to the 5 axis configuration of the machine.
The user can choose between wet and dry milling options based on their requirement. We offer a wide range of options perfectly tuned for all possible requirements.

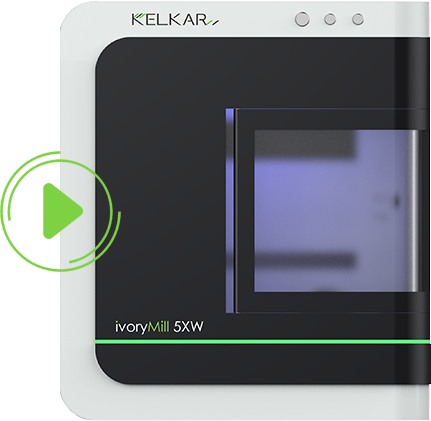

ivoryMill our 5 axis dental milling machine offers highest operational simplicity with it's unique Power-Play-Pause buttons. Three buttons is all it takes for you to control the dental milling machine.
ivoryMill can be used right out of the box. Its designed for a quick installation which helps you to start your milling in no time. Time equals Money.
ivoryMill can work along with any dental CAM software available. You are not bound in any way. Your dental milling requirements are in good hands.
All possible milling requirements such as coping, crowns, bridges, abutments, bars, scerw retained crowns etc. can be milled on the ivoryMill. We do not keep any stone unturned.
ivoryMill 5 axis dental milling machine can machine a variety of materials such as zirconium oxide, PMMA, PEEK, soft CoCr, wax, glass ceramic & hybrid ceramic to name a few.
| ivoryMill 4XD | ivoryMill 4XW | ivoryMill 5XD | ivoryMill 5XW | |
|---|---|---|---|---|
| No. of Axis | Four | Four | Five | Five |
| Rotary axis travel angle | A: +/- 180 B: N/A |
A: +/- 180 B: N/A |
A: +/- 180 B: +/- 15 |
A: +/- 180 B: +/- 15 |
| Dimensions | 536*704*602mm (W*D*H) | 536*704*602mm (W*D*H) | 536*704*602mm (W*D*H) | 536*704*602mm (W*D*H) |
| Spindle | 1.5 KW 60000 RPM |
1.5 KW 60000 RPM |
1.5 KW 60000 RPM |
1.5 KW 60000 RPM |
| Axis Motors | Servo | Servo | Servo | Servo |
| Tool Changer | 6 tool changer | 6 tool changer | 6 tool changer | 6 tool changer |
| Type of Processing | DRY | WET and DRY | DRY | WET and DRY |
| Accuracy | <10 micron | <10 micron | <10 micron | <10 micron |
| Compressed Air | 6 bar | 6 bar | 6 bar | 6 bar |
| Suction | Optional | Optional | Optional | Optional |
| Main Voltage/ Frequency | 230 V (+/- 10%) / 50 Hz | 230 V (+/- 10%) / 50 Hz | 230 V (+/- 10%) / 50 Hz | 230 V (+/- 10%) / 50 Hz |
| Materials | Zirconium oxide, aluminium oxide, PMMA, plastics, composites & wax. | Zirconium oxide, aluminium oxide, PMMA, plastics, composites, wax, Glass ceramics, hybrid ceramics. | Zirconium oxide, aluminium oxide, PMMA, plastics, composites & wax. | Zirconium oxide, aluminium oxide, PMMA, plastics, composites, wax, Glass ceramics, hybrid ceramics. |
